KA46CSC674

The CS series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure featuring EVC (Extended Voice Coil) technology not found in stock speakers. They use polypropylene cones with tough, ribbed, UV-treated surrounds for precise linear excursion and reliability.

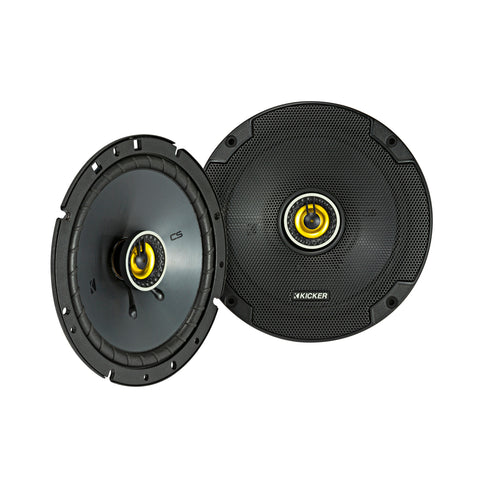

CS-Series 6-3/4-inch Coaxial Speakers are the perfect way to upgrade your factory speakers.

CS-Series Coaxials deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. The stamped-steel framework supports a rigid polypropylene cone with EVC (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.

These CS speakers work best with 100 watts of recommended power. See below for more details.

Recommended Amplifiers
KA43DXA2504
KA43CXA3004
KA43CXA6005
KA44KXA4004
Some amplifiers may require bridging in order to provide the recommended power)

- Speaker Design - 2-Way
- Woofer - 6 3/4" (165 mm)
- Tweeter - 1/2" (13 mm)
- Rated Impedance - 3.3 Ohm
- Peak Power - 300 W
- RMS Power - 100 W
- Sensitivity - 90 dB 1W, 1m
- Frequency Response - 40-20k Hz
- Mounting Hole Diameter - 5 1/2" (140 mm)
- Top Mount Depth - 3/16" (4 mm)
- Bottom Mount Depth - 1 13/16" (47 mm)
- Tweeter Protrusion - 0" (0 mm)
- Grilles - Included
- Tweeter Magnet Material - Neodymium
- Tweeter Dome Material - PEI (Polyether Imide)
- Tweeter Design - Balanced Dome
- Woofer Cone Material - Polypropylene
- Woofer Surround Material - Polyester Foam
